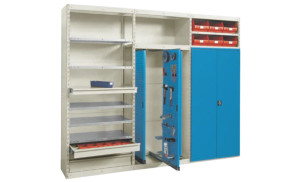

Characteristics
- Basic and add-on bays
- 4 heights: 1996, 2178, 2360 and 2541 mm
- 4 shelf widths: 626, 750, 1000 and 1300 mm
- 5 shelf panel depths: 300, 400, 500, 600 and 700 mm
- Panels can be adjusted in pitches of 60.5 mm at any position
- There are many possible combinations with adjustable panels, rear and side panels, full pull-out drawers and vertical pull-outs
Configuration options
- Door set
- Material troughs
- Stop bar
- Support frames for adjustable shelves
- Adjustable shelves
- System sections
- Base elements for system sections
- Side panels
- Rear panel
Uprights
- Painted
- 5 depths: 305, 405, 505, 605 and 705 mm
- 4 heights: 1996.5 mm, 2178 mm, 2360 mm and 2541 mm T/C-sections (40 mm wide) Uprights with punched mounting cams on both sides on a 60.5 mm pitch to accept shelves
- Slotted perforations ensure frictional connection on front ends
- Base elements cause a good bay load distribution
Vertical pull-outs with perforated panels and hooks
- Can be used on both sides
- 100% full pull-out + 30 mm
- 100 kg load capacity per pull-out
- The panels with their vast wall hook product range are perforated in a 38 mm pitch, with a square diameter of 10 mm
Drawers
- For shelf width 1000 mm x shelf depth 500 mm
- 100% full pull-out
- High precision ball-bearing rail
- 100 kg load capacity
- Folded handle ledge
- Perforated drawer bottom for attachment of partitions
- Drawer inside walls with pressed-in reinforcements and slots for attachment of dividers
- Inner dimensions of drawer: width 950 mm x depth 459 mm
- Accessories: partitioning sets and archiving labels
Shelf frames with shelf inserts steel panels or chipboard
- A pair of shelf frames with galvanized steel panels or chipboard
- 4 depths: 400, 500, 600 or 700 mm
- 3 widths: 1000, 1250 or 1750 mm
- Compartment load capacity between 175 and 600 kg according to width and depth
Shelf panels
- 4 different widths: 626, 750, 1000 and 1300 mm
- 5 different depths: 300, 400, 500, 600 and 700 mm
- Surface painted or galvanized
- 200 kg load capacity
- Load capacity can be increased by up to 200kg in addition throughthe assembly of up to 2 support frames
- Edging 40 mm high
- Folded three times in longitudinal and cross direction
- With squared corner tabs and stacking notches
- Accessories: compartment dividers, compartment side panels,crevice inserts, rear shelf stop
- Perforated on a 50 mm pitch on the long sides
Pull-out panel
- For shelf width 1000 mm x shelf depth 500 mm
- Storage space: width 985 mm x depth 468 mm
- 100% full pull-out
- High precision ball-bearing rail
- 60 kg load capacity
- Folded handle ledge at the front
